Customizable Bowl Type Ball Joint With Internal And External Threads

Customizable Bowl Type Ball Joint With Internal And External Threads

【 Product Description 】

The bowl type ball joint is a precision-engineered mechanical connector designed to transmit motion and force between two components while allowing angular movement. Commonly used in control cable systems, linkage assemblies, and motion control mechanisms, it ensures smooth operation, accurate positioning, and reliable performance under heavy-duty conditions.

Constructed from high-strength materials such as carbon steel or stainless steel, the bowl-type design provides enhanced stability and wear resistance, making it ideal for industrial, automotive, marine, and agricultural applications.

【 Applications 】

• Automotive throttle, brake, and gear control systems

• Industrial machinery and automation equipment

• Marine engine control and steering systems

• Agricultural and construction machinery

• Aerospace and defense linkage systems

• Remote mechanical actuation systems

【 Features 】

• High mechanical strength and long service life

• Smooth rotational and angular movement

• Anti-corrosion and wear-resistant finish

• Easy installation and quick connection design

• Compatible with control rods, cables, and linkage assemblies

• Custom dimensions and materials available

【 Advantages 】

• Reliable Performance: Stable and precise movement under dynamic load conditions.

• Customization Options: Tailored designs to fit specific cable or linkage requirements.

• Versatility: Suitable for both push and pull control applications.

• Cost-Effective: Long lifespan reduces maintenance and replacement costs.

• Safety & Efficiency: Maintains system integrity even under vibration and stress.

【 Working Principle 】

The bowl type ball joint consists of a spherical ball mounted within a concave housing (“bowl”). This configuration allows rotational and angular motion in multiple directions. When used in control or linkage systems, the ball joint transmits push or pull forces while compensating for misalignment between connected parts. This flexibility ensures smooth operation and prevents bending stress on the control cable or rod, extending the life of the entire assembly.

【 Frequently Asked Questions (FAQ) 】

Q1: Can the bowl type ball joint be customized?

Yes. We offer custom thread sizes, materials, and surface finishes to meet your specific design and performance requirements.

Q2: What materials are recommended for marine or outdoor environments?

Stainless steel (SS304 or SS316) is recommended for corrosion resistance in marine and humid conditions.

Q3: Is the ball joint compatible with standard push-pull control cables?

Yes. It can be used with a wide range of standard and custom push-pull cable assemblies.

Q4: How should I maintain the ball joint for long service life?

Regularly apply light lubrication to reduce friction and protect against corrosion, especially in high-load applications.

Q5: What’s the difference between a bowl type and standard ball joint?

The bowl type provides a larger bearing surface and better angular load distribution, making it ideal for heavy-duty or high-misalignment systems.

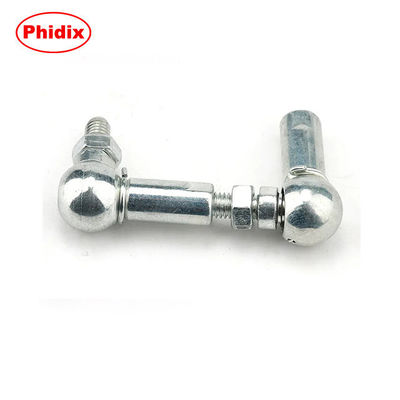

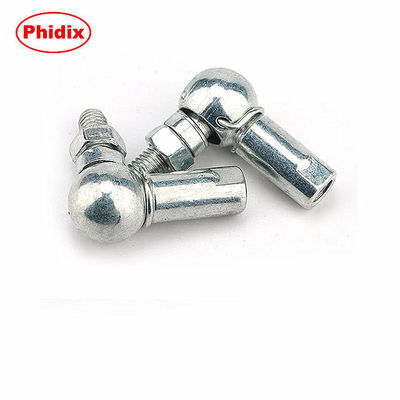

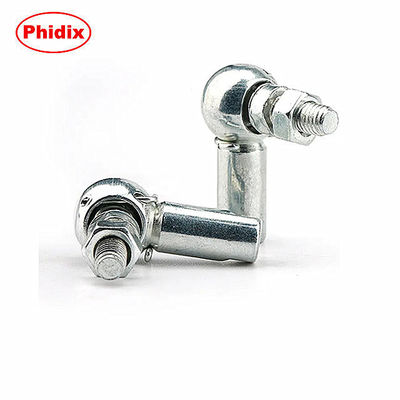

【 Real Picture 】
